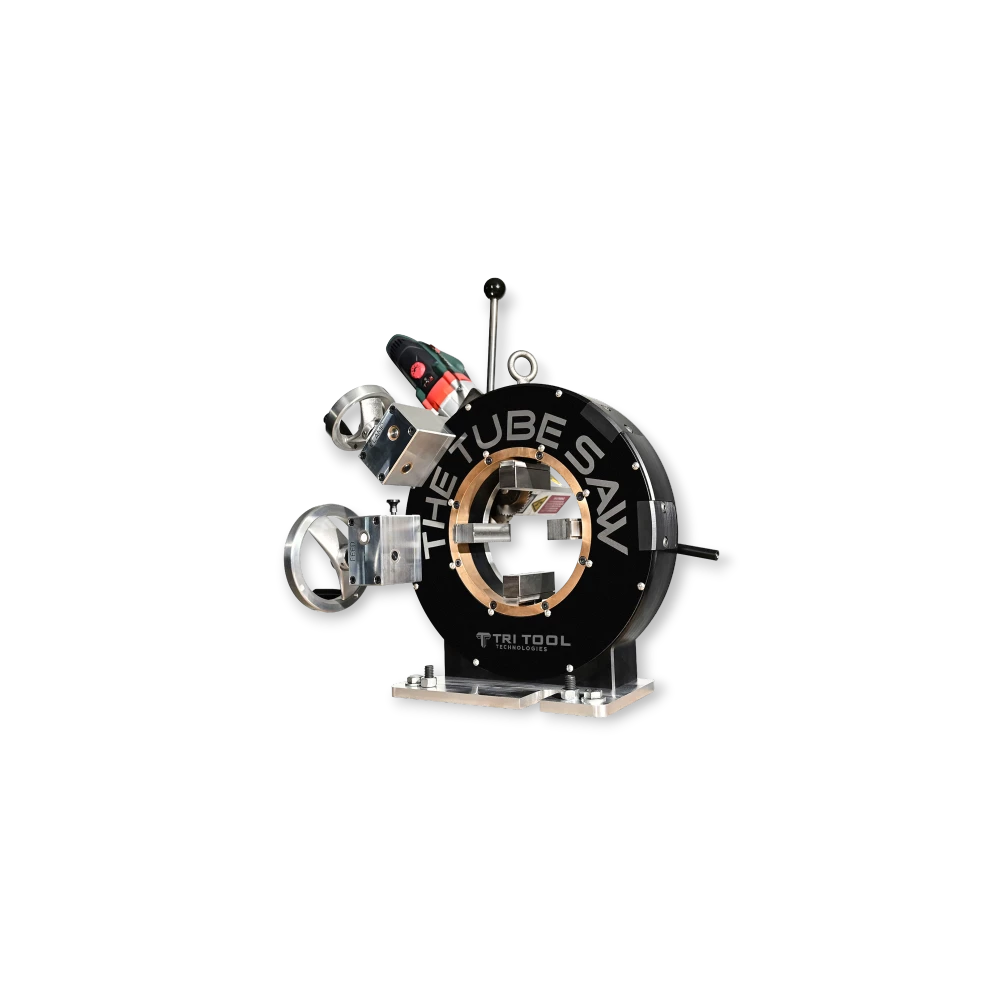

THE TUBE SAW, CORDLESS (P/N: 01-2643)

THE TUBE SAW, CORDLESS

Tube Saw Sub-Assembly, Mounting Plate, Adjustable Saw Head w/ 40VDC Cordless Motor (UL & CSA Listed), (2) Clamp Extender Kits, Operator Tool Kit and Manual. Est. Shipping Weight: 80 lbs. Carrying Case Sold Separately THE TUBE SAW is designed to cut 1/8” to 6” pipe and 1/4” to 6” tube, and every size within its range (.250 to 6.760 inch), capable of cutting thin wall stainless steel from .035” to .150” wall thickness. The machine enhances productivity by nature of a one pass cut and ability to change material diameters quickly with no tools. The saw passes around the perimeter of the material to be cut after the plunge cut. The design of the cutting head provides a square cut with high quality surface finish. The jaws clamp securely to the material being cut and self-lock to prevent loosening. Jaw extensions to hold smaller materials snap in place. A variable speed motor provides cutting speed control for long blade life and material finish. Feed handle is geared to prevent operator from overrunning the cut yet provide smooth and effortless control. Different blade diameters and tooth counts are available for different wall thickness and materials. Quick-Look Features

• Quick change 4-jaw clamping system holds material
• firmly.
• Handwheels provide operators with smooth precise
• rotation.
• Saw position changes for tube sizes done with a sin- gle lever, no tools required.
• Saw plunge for cut initiation with a single lever.
• Handwheel drive & clamp location can be changed for operators’ preference.
• Laser line quickly aligns cut line to sawblade.
• Enclosed drive train for operator safety and lubricat- ed atthe factory for service free maintenance.
• Base plate slot mounts to optional standard pipe stand.

Machine Package Includes:

• The Tube Saw Assembly
• Operator’s Manual
• Optinal Accessories:
• Carrying case
