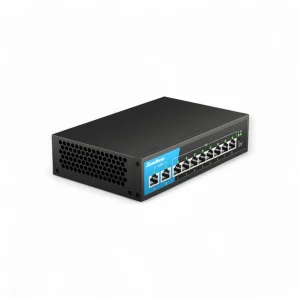

Scodeno Switch 10 port, Fast Ethernet, PoE, Management Support, Layer 2 switch, P/N S200-10TP-MAC
S200-10TP-MAC is switch 10 port, main port speed fast ethernet, uplink ports Fast Ethernet, PoE, Unmanagement, Layer 2 switch.
6 Mọi người đang xem sản phẩm này!
Features:
Input Voltage: AC 100-240V 50/60 Hz
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fanless design
Surge Protection: 6KV/4KV
Test Report: CCC, RoHS, FCC, CE
Product Description:
S200-10TP-MAC series is non management PoE switch with 10×10/100/Mbps adaptive RJ45 ports, port 1-8 support PoE/PoE+, total 135W power consumption, port 9-10 is 10/100Mbps uplink ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.
Specification S200-10TP-MAC
| Fixed Ports | |
| Fixed Ports | 10*10/100 Base-T |
| Power interface | AC100-240V triangle interface |
| LED Indicators | P , Active |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m/ 250m |
| Network Topology | |
| Ring topology | Not Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input voltage | AC 100-240V 50/60Hz |
| Total Power consumption | <135W(PoE) |
| Main board power | <2W |
| PoE | |
| PoE protocol | 802.3AF，802.3AT |
| Pin Assignment | 12+ /36- |
| Pin port | 1-8 Port |
| Dialing switch Instruction | |
| 1 | Port 1-8 250m long distance transmission |
| 2 | Auto detect and reboot the unresponsive PoE devices for recovery |
| Layer 2 Switching | |
| Switching capacity | 2G |
| Packet forwarding rate | 1.488Mpps |
| MAC address table | 2K |
| Buffer | 768k bit |
| Jumbo frame | 2K bytes |
| Forwarding delay | <5µs |
| MDX/MIDX | Support |
| Storm control | Support |
| Environment | |
| Operating temperature | -10℃~+50℃ |
| Storage temperature | -40℃~+70℃ |
| Relative humidity | 5%~90% (non-condensing) |
| Thermal methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| EMC & Ingress Protection | |
| Surge protection of Power | Common mode 6KV, differential-mode 4KV |
| Surge protection of Ethernet port | Common mode 6KV, differential-mode 4KV |
| ESD | Contact 8KV, Air 15KV |
| Free fall | 0.5m |
| Mechanical Dimensions | |
| Product size | 190*140*44mm (LxWxH) |
| Installation Method | Desktop |
| Weight | 0.6KG |
| Packing List | |
| Packing list | Device, Inspection Certificate, User manual, Power cord |
| Brand | Scodeno |
|---|---|
| Series Switch | S200 |
| Number of Port | 10 |
| Main Port Speed | Fast Ethernet |
| Uplink Ports | Fast Ethernet |
| POE Support | PoE |
| Management Support | Unmanagement |
| Layer Switch | Layer 2 switch |
