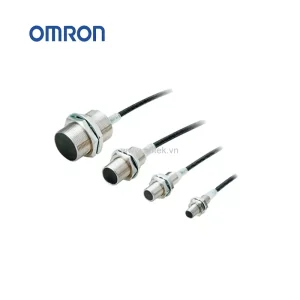

Cảm biến tiệm cận Omron E2E-X2Y1 2M

Thông số kỹ thuật cảm biến tiệm cận Omron E2E-X2Y1 2M

• Form of output switching element: Normally open (NO)
• Size Ø: M12
• Shielded: Shielded
• AC/DC Wire: AC 2-Wire
• Sensing distance: 2 mm ±10%
• Set distance *1: 0 to 1.6 mm
• Differential travel: 10% max. of sensing distance
• Detectable object: Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
• Standard sensing object: Iron, 12 × 12 × 1 mm
• Response frequency *2: 25 Hz
• Power supply voltage (operating voltage range): 24 to 240 VAC (20 to 264 VAC), 50/60 Hz
• Leakage current: 1.7 mA max.
• Control output Load current: 5 to 200 mA
• Control output Residual voltage: Refer to Engineering Data on Data Sheet.
• Indicators: Operation indicator (red)
• Operation mode (with sensing object approaching): Y1 Models: NO
  Y2 Models: NC
  Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
• Protection circuits: Surge suppressor
• Ambient temperature: Operating/Storage: -40 to 85°C (with no icing or condensation)
• Ambient humidity range: Operating/storage: 35% to 95% (with no condensation)
• Temperature influence: ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C, ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
• Voltage influence: ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
• Insulation resistance: 50 MΩ min. (at 500 VDC) between current-carrying parts and case
• Dielectric strength: 4,000 VAC (M8 Models: 2,000 VAC), 50/60 Hz for 1 min between current-carrying parts and case
• Vibration resistance: Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
• Shock resistance: Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
• Degree of protection: Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant Connector Models: IEC 60529 IP67
• Connection method: Pre-wired Models (Standard cable length: 2 m) and Connector Models
• Weight (packed state): Approx. 70 g
• Materials Case: Nickel-plated brass
• Materials Sensing surface: PBT
• Materials Clamping nuts: Nickel-plated brass
• Materials Toothed washer: Zinc-plated iron
• Accessories: Instruction manual
